In today's world where wireless devices like TWS earbuds and smart speakers are ubiquitous, users have grown accustomed to the seamless' plug-and-play 'experience. This convenience is made possible by Google's Fast Pair technology. This article provides a comprehensive breakdown of Fast Pair's technical principles, core advantages, and full authentication process, helping you quickly master this essential technology.
1. What is Google Quick Pairing?
Google Fast Pairing Service (GFPS) is a core component of Nearby, utilizing Bluetooth traditional mode and Low Energy Bluetooth (BLE) technology to enable fast and energy-efficient device pairing. Initially inspired by NFC pairing, it achieves longer-range automatic discovery and pairing through BLE technology.
In simple terms, when a compatible Bluetooth device (like headphones or speakers) is placed near an Android phone or Chromebook, a pairing notification automatically appears on the screen. A single tap completes the pairing—no need to navigate through the settings menu or fiddle with function keys.
1. For users, the key advantage of Google Fast Pair is:
1) Simple operation: Connect with one tap after opening the lid
2) Seamless cross-device: All devices under the same Google account can connect quickly
3) Location tracking: Supports Find My Device network. You can locate your device if it is lost.
2. For manufacturers, the key advantage of Google Fast Pair is:
1) Enhance user experience: Lower the pairing threshold and reduce customer service inquiries
2) Brand exposure: The paired pop-up displays brand logos and customized interfaces
3) Function Expansion: Supports firmware updates, device positioning, and other value-added features
2. Technical Principle of Fast Pair
1. The core workflow of Fast Pair consists of four stages:
1) Phase 1: Broadcasting
When the device enters pairing mode, it alternates between broadcasting two types of data packets via BLE:
l Model ID broadcast packet: Contains the device model ID for the phone to identify the device type.
l Account data broadcast packet: Contains encrypted account information for quick pairing of associated devices.
2) Phase 2: Discovery
When the phone detects BLE broadcasting, it sends a query request to Google services to retrieve the device's name, icon, and other information. If the device has been paired with the current Google account, the system will automatically prepare for pairing.
3) Phase 3: Pairing
After the user clicks the pop-up confirmation, the phone and device establish a classic Bluetooth connection and complete pairing. The entire process usually takes less than 3 seconds.
4) Phase 4: Functional Expansion
After pairing, the device can enable more extended features:
l Audio Switch: Automatically switch between phone, tablet, and Chromebook.
l Find device: Records the last location and supports ringback tone search.
l Firmware update: Update the device firmware directly from your phone.
2 Key Technical Points
1）TxPower calibration ：
The TxPower value determines the accuracy of the phone's device distance detection. Google requires the "Quick Pair Validator" app to measure and set this value precisely at 1 meter from the phone, which directly affects the timing of the pairing pop-up.
2) Battery notification specifications:
The device must send battery information as required, such as triggering a status update when the charging case is switched or the earphones are plugged or unplugged. Battery information must be displayed for at least 8 seconds, and it must update automatically when the battery level changes by more than 10%.
3) BLE connection optimization:
To achieve optimal connectivity performance, Google recommends setting the BLE connection interval to 7.5 milliseconds to ensure prompt device response and optimized power consumption.

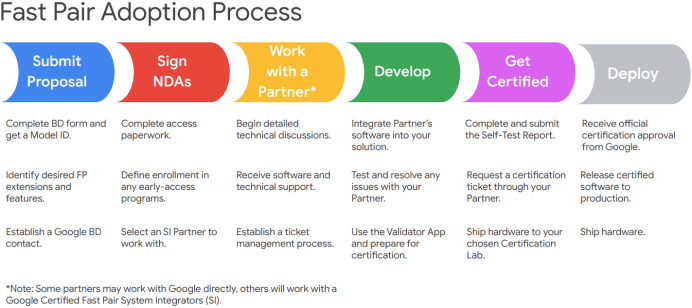

3. Authentication Process of Fast Pair
1. Use Validator for self-testing
2. Prepare the self-inspection report
3. Submit for official certification
4. Get authentication
5. Subsequent Maintenance
4. FAQ
Q1: Can all Bluetooth devices perform Fast Pair authentication?
A: Any device supporting BLE broadcasting is theoretically acceptable, but Google prioritizes consumer audio and wearable devices like headphones, speakers, and smartwatches. Special devices must be coordinated with the BD team beforehand.
Q2: What are the main reasons for authentication failure?
A: The most common reasons include:
1) Inaccurate TxPower calibration causes abnormal distance detection
2) Battery data submission fails to meet specifications (e.g., insufficient duration or delayed updates)
3) The broadcast parameter settings do not meet the requirements
4) Abnormal pairing with multiple phones
Q3: Can I complete the authentication without SI support?
A: While theoretically feasible, it presents considerable challenges. Google strongly recommends partnering with certified System Integrators (SIs), as they possess expertise in pre-built solutions for various chipsets, along with a thorough understanding of common certification issues and their solutions, enabling them to deliver more efficient development support.
Q4: Can the product be sold globally after passing the certification?
A: Fast Pair authentication is globally recognized, but please note the following points:
1) Some countries/regions may have additional Bluetooth regulatory requirements
2) Device features may be limited in some regions
3) It is recommended to verify the compliance requirements of the target market in advance.
5. Service Support of Zhongle Certification
As a professional certification service provider, Zhongle Certification offers you a one-stop Fast Pair certification solution:
✅ Preliminary consultation: Evaluate whether the product meets Fast Pair certification requirements and plan the certification path
✅ SI Integration: Assists in connecting with Google-certified system integrators to ensure smooth development
✅ Pre-test service: Use the official Validator app for professional self-testing to detect issues early
✅ Report Guidance: Assistance in completing and preparing various self-assessment reports
✅ Sample management: Assist in the preparation and shipment of certified samples
✅ Full-process tracking: Track certification progress and provide timely feedback and issue resolution
